532nm Green Laser Scan Head 10mm Beam Spot with XY2-100 protocol

Product Categories

Beijing JCZ Technology Co. Ltd

Contact Now

532nm Green Laser Scan Head 10mm Beam Spot with XY2-100 protocol

Brand Name : JCZ

Model Number : GO5-YAG/CO2/UV/Green-10-D

Place of Origin : Beijing, China

MOQ : 1 set

Price : USD 1000-1200/set

Payment Terms : T/T, Western Union

Supply Ability : 10000 set/month

Delivery Time : 1 day

Packaging Details : carton

laser : Fiber Yag CO2 UV Green

wave lenght : 1064nm/10.6um / 532nm / 355nm / 266nm

speed : 5000

contain : scan head + power + connect

spot size : 10mm

signal : digital

Color : Grey

Contact Now

532nm Green Laser Scan Head 10mm Beam Spot with XY2-100 protocol

Quick Detail:

laser-based scanners used on fiber laser machine for laser marking and laser engraving.High precision, quality, provide after-sales service

532nm Green Laser Scan Head 10mm Beam Spot with XY2-100 protocol

Description:

Condition	New
Laser Type	fiber/co2/yag
CNC or Not	Yes
Cooling Mode	Air Cooling
Control Software	EZCAD
Graphic Format Supported	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Working Accuracy	0.005
Place of Origin	Beijing, China (Mainland)
Brand Name	JCZ
Model Number	GO5-YAG/CO2-10-D
After-sales Service Provided	Overseas service center available
color	grey

Work stable

One year warranty , during this time ,we repair the product free.

Lifetime after-sales services

Professional team to provide after-sales technical support

Professional team Software Develop ,can custom the special software

10 years for laser marking /engraving control system

Industry:

Applications:

Laser Marking ,
laser engraving

Specifications:

The optical hole diameter	10mm
Corresponding time step
The deflection Angle of 1%	0.4ms
The deflection Angle of 10%	1.2ms
Speed
Marking speed	5000mm/s
Positioning speed	10000mm/s
Temperature drift(more than 8 hours)	<0.3mrad
Interface protocol	XY2-100 Standard
Optical performance
Scanning angle	±0.35 rad
Gain error	＜5 mrad
Zero offset	＜5 mrad
Working temperature	25℃ ± 10℃
Power	±15V/5A

532nm Green Laser Scan Head 10mm Beam Spot with XY2-100 protocol

Competitive Advantage:

Cheap ,
high speed,
work stable ,
good quality
zero drift,
smaller size

Ship way

DHL TNT UPS FEDEX EMS and so on

Product Tags:

laser scanning head

laser scanning equipment

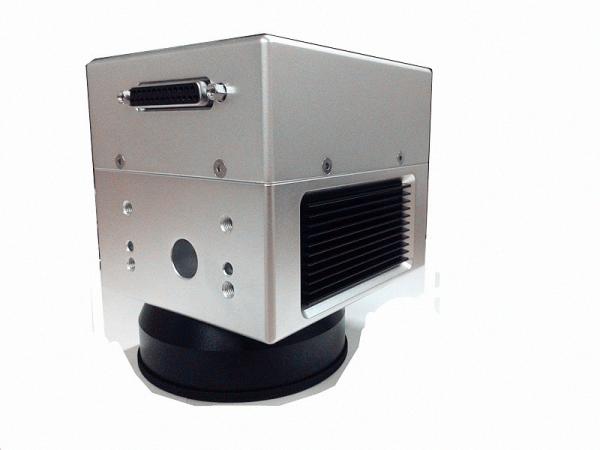

532nm Green Laser Scan Head 10mm Beam Spot with XY2-100 protocol Images
